Descripción
VENTURE...
INTO THE OUTDOORS

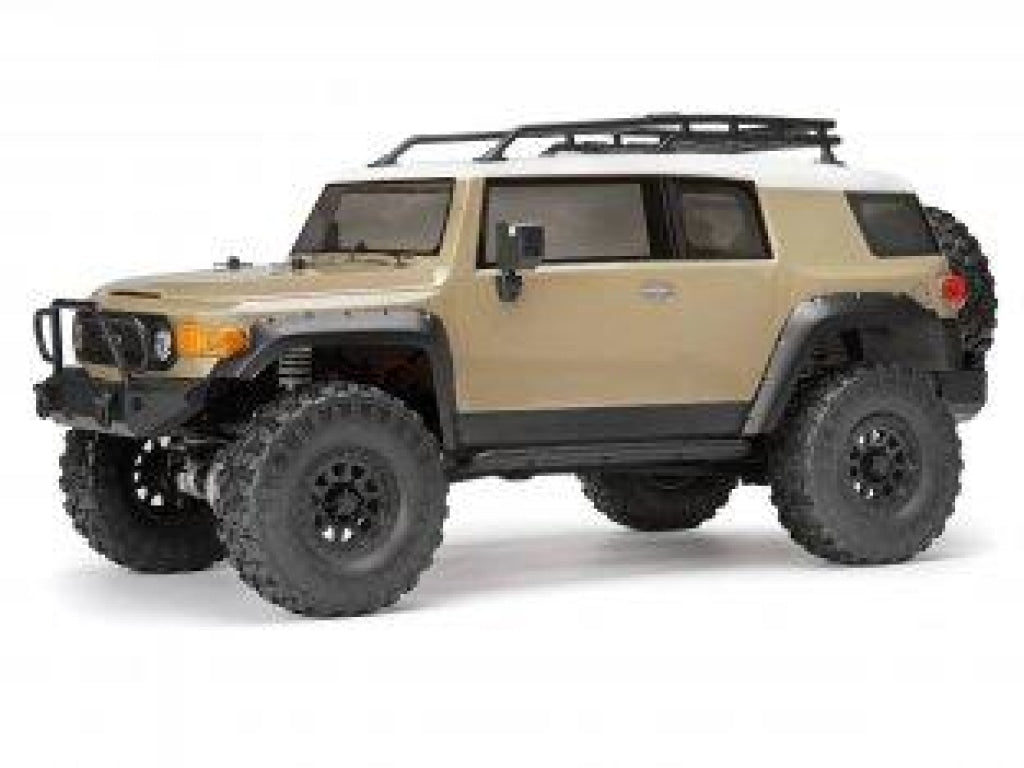

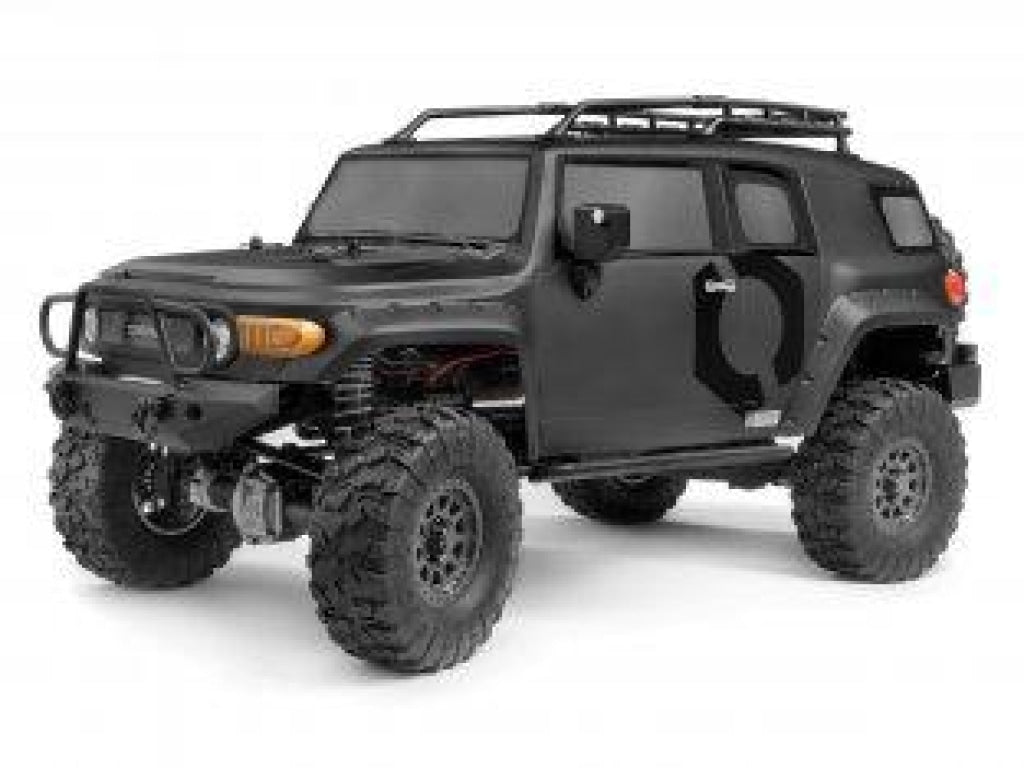

The Venture FJ Cruiser is the ultimate adventure-ready scale RC trail truck. Developed from the ground up to be the most advanced and driver-friendly scaler truck available, the HPI Venture is ready for trail driving across mountains, streams and more. It's the perfect trail companion for anyone from weekend ramblers to globe-trotting adventure heroes!
The Venture combines a realistic front-motor position and formed steel chassis rails with a realistic suspension and drivetrain. The Venture chassis is finished with the fabulous look of the celebrated Toyota FJ Cruiser for a fantastic scale off-road experience only HPI can deliver! With a fully licensed replica body that includes front and rear bumpers, mirrors, functional roof rack and swing-away spare tire mount, the Venture brings total scale realism to crawler fans right out of the box. Underneath the body, the steel C-channel chassis rails support a front-mounted motor, transmission and servo, plus a central transfer case that sends power to telescoping driveshafts and solid axles with metal diff covers. Authentically scaled oil-filled shock absorbers and full-time locked differentials work with the realistically treaded tires for confident driving in all off-road situations.
FEATURES
- Factory-assembled & pre-painted electric-powered full-time 4WD 1/10 scale off-road truck
- Officially licensed replica Toyota FJ Cruiser body
- Functional roof rack plus side mirrors
- Front bumper features brush guard, light mounts and D-ring shackles
- Rear bumper features swing-away spare tire mount and D-ring shackles
- Adjustable rock rail side sliders help the truck get over tough obstacles
- Formed steel C-channel chassis rails
- Front-mount motor and transmission position for ultimate scale realism
- Front weight bias improves climbing traction and provides more realistic driving
- All-metal gear drivetrain for extreme durability
- Central transfer case with slider driveshafts to front and rear differentials
- Transfer case prevents motor stall for the best climbing action
- Transfer case also straightens & lowers center driveshafts for more efficient power transfer
- Axles feature small diff case or "pumpkin" size for best possible ground clearance
- Aluminum differential pumpkin cover
- Locked differentials for superb off-road climbing traction
- 12mm aluminum hex hubs to fit any available crawler wheels
- Shock towers have multiple shock mounting positions to allow for wheelbase options
- BTA (Behind The Axle) steering linkage for improved approach and departure angles
- Panhard bar for scale looks and optimized geometry with zero bump steer
- Zero Ackermann high steer knuckle design for improved obstacle clearance and tighter turning radius
- 3-link front and triangulated 3-link rear suspension
- Oil-filled aluminum coilover shock absorbers (63-90mm stroke)
- Adjustable threaded shock bodies for quick ride height changes
- Dual-stage shock springs
- Aluminum lower link/shock mounts
- Aluminum panhard mounts
- CMS (Chassis Mounted Servo) realistic steering setup
- Adjustable body mounting to fit any style of off-road body
- Fully braced rear body mounts
- All-terrain Rockthorn 109mm x 38mm soft S-Compound tires with chunky tread blocks
- Beadlock style CR-10 ten-spoke 1.9” wheels
- HPI 35-turn crawler spec motor provides speed as well as crawling torque
- HPI waterproof SC-3SWP3 Crawler Edition adjustable electronic speed control
- HPI water-resistant SS-30MGWR steering servo
- HPI 2.4GHz radio system with carry handle
- HPI waterproof 2.4GHz receiver in protective case
- Full set of ball bearings
- Includes NiMH battery and charger and 4 AA batteries for radio transmitter
DIMENSIONS
- Length: 527mm (20.7")
- Width: 227mm (9")
- Height: 238mm (9.4") with roof rack, 217mm (8.5") without (will vary depending on tire choice and suspension settings)
- Wheelbase: 311mm (12.3")
- Front overhang: 101mm (3.9")
- Rear overhang: 135mm (5.3")
WEIGHT
- Running weight: 2.4kg (5.3lbs)
- Weight without battery: 2.1kg (4.7lbs)
- Body Weight: 0.21kg (7.44oz)
CAPABILITY
- Break-over angle: 44.5 degrees
- Approach angle: 55 deg
- Departure angle: 45.5 deg
- Max climb angle: 49 deg
- Max tilt angle: 28 deg
- Axle articulation: 30 deg
- Ground clearance 68mm capable: (2.7")
- Ground clearance at standard ride height 60mm: (2.4")
- Axle ground clearance 32mm: (1.3")
GEARING
- Drivetrain ratio: 7.6:1
- Transmission gearing: 1.53:1
- Axle gearing: 3.31:1
- Transfer case gearing: 1.5:1
